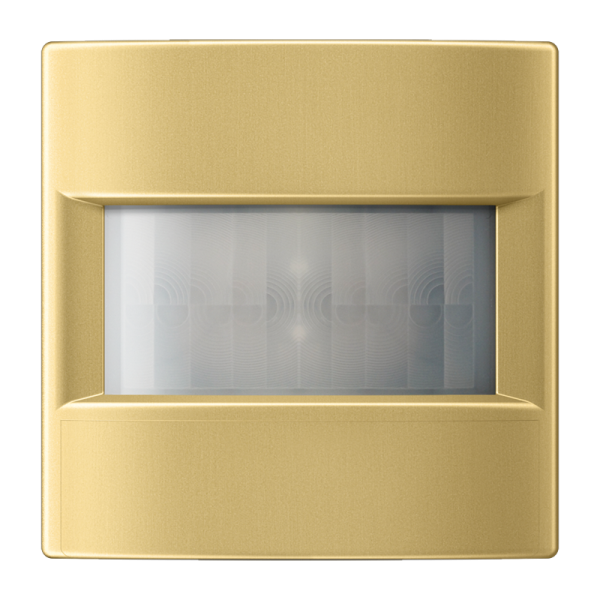

JUNG HOME датчик движения 1,1 м, BT ME 17181 WU C
Артикул: BTME17181WUC
Есть на складе
для вставки «освещение» арт.: 1701 SE, 1701 PSE, 1704 ESE, 1702 SE, 1710 DE, 1711 DE, 1712 DE, 1713 DSTE, 1723 NE
IP 44 suitable only for interiors
available April 2023
Использование по назначению
Характеристики
Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)
IP 44 suitable only for interiors
available April 2023
Использование по назначению
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- Wireless linking with JUNG HOME system devices
- Operation with system insert for switching or dimming or satellite insert 3-wire
- Wall installation on system insert
Характеристики
- Commissioning and operation using JUNG HOME app with mobile terminal device (smartphone or tablet) via Bluetooth®
- Switch for continuous ON/OFF or automatic operation
- Detection range extended by combining several JUNG HOME motion detectors or via satellite input
- Заслонка для ограничения зоны обнаружения
- Multi-coloured status indicator with optional night mode
- Disabling of local operation
- Free linking of the motion sensor with actuator in the insert or wirelessly with other JUNG HOME devices or for calling up a light scene
- Up to 16 time programs control the functions of the respective insert (ON/OFF switching or dimming)
- Staircase lighting function (lighting cannot be switched off manually) with switch-off warning
- Быстродействие
- Activate/deactivate automatic operation using JUNG HOME app
- Автоматический переход на летнее/зимнее время
- Автоматическое обновление даты и времени при соединении со смартфоном
- Maximum and minimum brightness adjustable, with dimming insert
- Switch-on with last brightness or fixed switch-on brightness, with dimming insert
- Local actuator integrated into groups, central functions and light scenes
- Evaluation of the satellite inputs (if present) for controlling the insert
- Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
- Can be updated using JUNG HOME app
Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)
- Time programs with sunrise or sunset (astro function)
- Time programs with random timing
- Динамическое время запуска
- Disable and override functions: Continuous ON/OFF or ON/OFF for fixed time
- Night light function with period for brightness reduction, with dimming insert
- Hotel function (orientation light instead of OFF), with dimming insert
- Warm dimming (changing of the colour temperature with simultaneous brightness increase), with dimming insert
- Задержка включения/выключения
- Цвета металла (термопласт лакиров.)
- латунь Classic
- 0, 25, 50, 75, 100 %
- -5 ... +45 °C
- 20 ... 70 % (без конденсата)
- IP 44
- около 10 с ... 60 мин.
- max. 10 mW (class 1.5)
- 1,10 м
- 2402,0 ... 2480,0 МГц
- -5 ... +45 °C
- -25 ... +70 °C
- ± 13 s
- min. 4 h
- 180°
- около 5 ... 1.000 лк (и дневной режим)
- около 30 м
