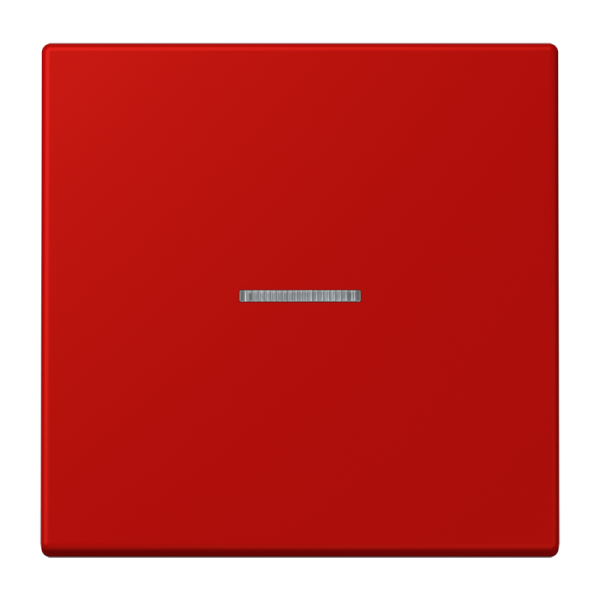

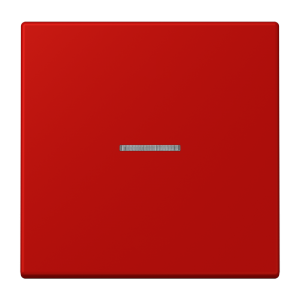

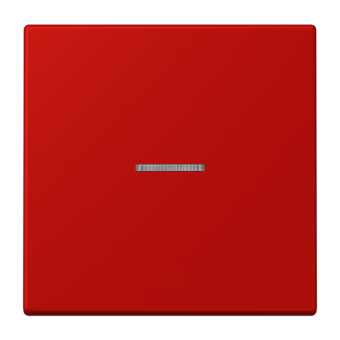

JUNG HOME кнопка, 1 группа, BT LC 17101227

Рейтинг:
Артикул: BTLC17101227
Есть на складе
31 235,00 руб
+

Сообщить, когда станет дешевле

для вставки «жалюзи» арт.: 1730 JE и 1731 JE
для вставки «освещение» арт.: 1701 SE, 1701 PSE, 1704 ESE, 1702 SE, 1710 DE, 1711 DE, 1712 DE, 1713 DSTE, 1723 NE
available April 2023

Использование по назначению
  • Manual and automatic operation of e.g. blinds/shutters, lighting or fans
  • Wireless linking with JUNG HOME system devices
  • Operation with system insert for switching, dimming, blind or satellite insert 3-wire

Характеристики
  • Commissioning and operation using JUNG HOME app with mobile terminal device (smartphone or tablet) via Bluetooth®
  • Top, bottom and full-surface operation with up to 2 linked functions per rocker
  • Use the operating buttons to control groups, central functions or to call up light scenes
  • Use the operating buttons to operate wirelessly linked JUNG HOME devices
  • Multi-coloured status indicator with optional night mode
  • Actuator status feedback via status LED
  • Disabling of local operation
  • Local actuator integrated into groups, central functions and light scenes
  • Up to 16 time programs control the functions of the respective insert (e.g. switch ON/OFF, dim, move blind, adjust temperature)
  • Staircase lighting function (lighting cannot be switched off manually) with switch-off warning
  • Быстродействие
  • Activate/deactivate automatic operation using JUNG HOME app
  • Автоматический переход на летнее/зимнее время
  • Автоматическое обновление даты и времени при соединении со смартфоном
  • Maximum and minimum brightness adjustable, with dimming insert
  • Switch-on with last brightness or fixed switch-on brightness, with dimming insert
  • Ventilation position, blind/shutter running time, slat change-over time, change-over time for direction change and inverse operation adjustable, with blind insert
  • Evaluation of the satellite inputs (if present) for controlling the insert
  • Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
  • Can be updated using JUNG HOME app

Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)
  • Use the operating buttons to trigger the disable and override functions
  • Time programs with sunrise or sunset (astro function)
  • Time programs with random timing
  • Disable and override functions: Lock-out protection, continuous ON/OFF or ON/OFF for a fixed time
  • Night light function with period for brightness reduction, with dimming insert
  • Hotel function (orientation light instead of OFF), with dimming insert
  • Warm dimming (changing of the colour temperature with simultaneous brightness increase), with dimming insert
  • Задержка включения/выключения
A labelling request in the GRAPHIC TOOL must be submitted together with the order: www.jung.de/gt
Subsequent labelling of the buttons is not possible.
  • матовое исполнение, лакиров
  • rouge vermillon 31
  • +5 ... +45 °C
  • -25 ... +70 °C
  • max. 10 mW (class 1.5)
  • 2402,0 ... 2480,0 МГц
  • ± 13 s
  • около 4 ч
  • около 30 м
