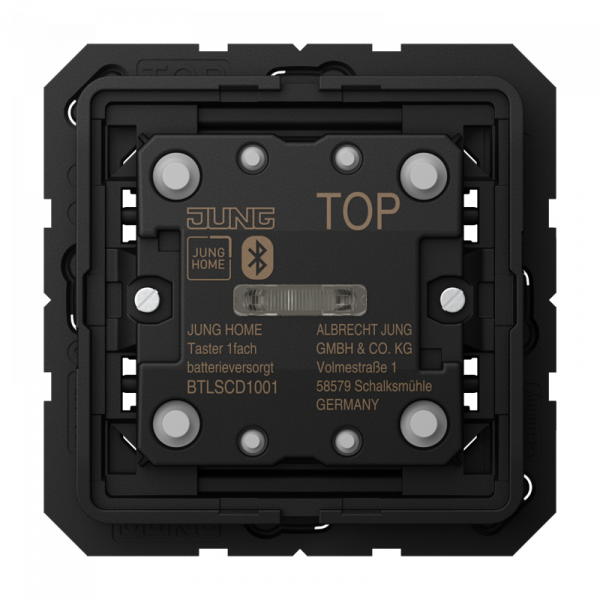

JUNG HOME кнопка, 1 группа, с аккумуляторным питанием, BT LS CD 1001
Артикул: BTLSCD1001
Есть на складе
including mounting plate, adhesive film and fastening screw
for rockers ref.-no. .. 101 KO5 .. of the CD and LS ranges
available in the 2nd half of 2023
Использование по назначению
Характеристики
Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)
for rockers ref.-no. .. 101 KO5 .. of the CD and LS ranges
available in the 2nd half of 2023
Использование по назначению
- Operation of e.g. blinds/shutters, lighting or fans
- Wireless linking with JUNG HOME system devices
- Mounting on wall box with dimensions according to DIN 49073
- Screw fixing on walls or adhesive fixing on smooth surfaces
Характеристики
- Commissioning and operation using JUNG HOME app with mobile terminal device (smartphone or tablet) via Bluetooth®
- Top, bottom and full-surface operation with up to 2 linked functions per rocker
- Use the operating buttons to operate wirelessly linked JUNG HOME devices
- Use the operating buttons to control groups, central functions or to call up light scenes
- Multi-coloured status indicator
- Battery status message via LED and JUNG HOME app
- Actuator status feedback via status LED
- Disabling of local operation
- Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
- Can be updated using JUNG HOME app
Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)
- Use the operating buttons to trigger the disable and override functions
- 3 В DC
- -5 ... +45 °C
- -25 ... +70 °C
- max. 10 mW, class 1.5
- 2402,0 ... 2480,0 МГц
- 1 x Lithium CR 2450N (recommended) or CR 2450
- около 30 м
- typical 4 to 5 years
