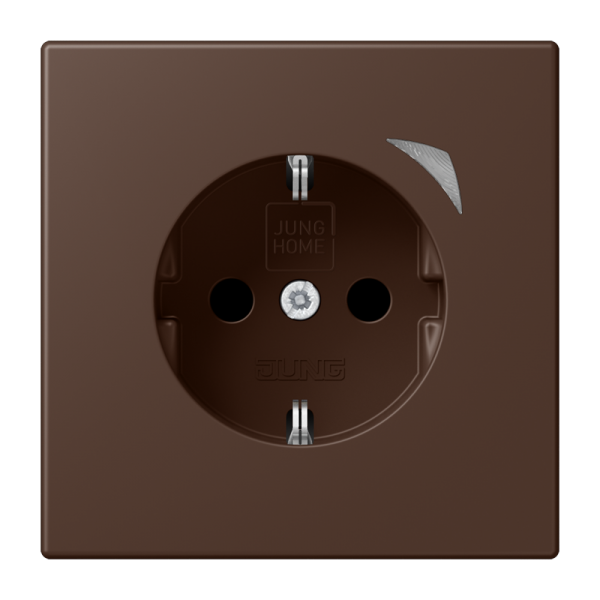

JUNG HOME SCHUKO® розетка Energy, BT LC 1521 SE239
Артикул: BTLC1521SE239
Есть на складе
with enhanced contact protection / shutter (Safety Plus)
with screw terminals for rigid and flexible wires up to 2.5 mm2
Supporting frame, claws and claw screws are integrated into the earth protection.
available April 2023
Использование по назначению
Характеристики
Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)
Zubehör:
Rahmen 28 mm Aufbauhöhe Art.-Nr.: A 558.. HBF .., LS 98.. HBF ..
with screw terminals for rigid and flexible wires up to 2.5 mm2
Supporting frame, claws and claw screws are integrated into the earth protection.
available April 2023
Использование по назначению
- Manual or automatic switching of lighting and common household devices
- Power (W) and energy measurement (kWh) of the connected devices
- Wireless linking with JUNG HOME system devices
- For use in dry indoor areas
- Установка в монтажной коробке с размерами согласно DIN 49073
- Depth of flush box (inner dimension): min. 53 mm
Характеристики
- Commissioning and operation using JUNG HOME app with mobile terminal device (smartphone or tablet) via Bluetooth®
- Button for switching and for commissioning
- Multi-coloured status indicator with optional night mode
- Disabling of local operation
- Up to 16 time programs
- Быстродействие
- Автоматический переход на летнее/зимнее время
- Activate/deactivate automatic operation using JUNG HOME app
- Автоматическое обновление даты и времени при соединении со смартфоном
- Integrated 16 A switch actuator
- Local actuator integrated into groups, central functions and light scenes
- Power measurement from 0.1 to 3650 Watt
- Recording of the energy flow over previous 24 hours and previous 31 days (charting)
- Operating hours counter, energy measurement period
- Power Save function (switches off standby electrical loads)
- Master/slave function (switches on a wirelessly linked electrical load depending on the electrical load connected)
- Overcurrent protection shutdown
- Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
- Can be updated using JUNG HOME app
Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)
- Switching of socket to continuously ON or OFF via disabling functions
- Time programs with sunrise or sunset (astro function)
- Time programs with random timing
- Задержка включения/выключения
Zubehör:
Rahmen 28 mm Aufbauhöhe Art.-Nr.: A 558.. HBF .., LS 98.. HBF ..
- матовое исполнение, лакиров
- terre d'ombre brûlée 31
- 50/60 Гц
- AC 220 ... 250 В ~
- -5 ... +45 °C
- 20 ... 70 % (без конденсата)
- max. 10 mW (class 1.5)
- 2300 Вт
- 2300 Вт
- 2402,0 ... 2480,0 МГц
- макс. 0,25 Вт
- -5 ... +45 °C
- -25 ... +70 °C
- ± 13 s
- min. 4 h
- 45 мм
- 4.3 A (@ cos ϕ 0.6)
- тип. 400 Вт
- 920 ВA
- 16 A
- тип. 400 Вт
- около 30 м
- -3680 ... 3680 Вт
- -999.999 ... 999.999 kWh
- 1000 ВA
- 1% ±0.05 W
