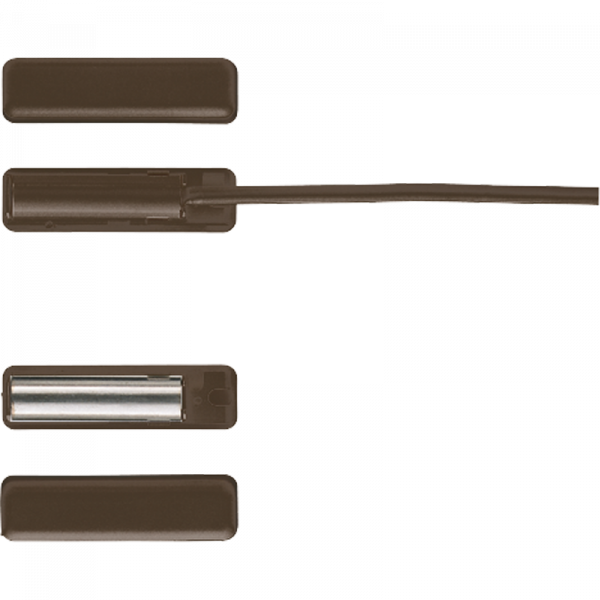

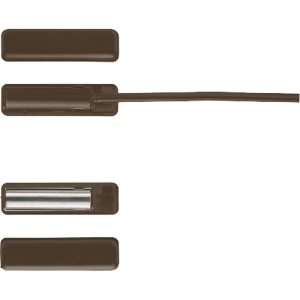

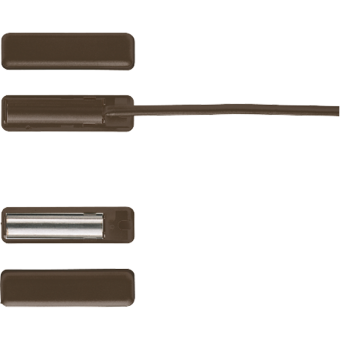

Магнитный контакт, FUS 4410 BR
Артикул: FUS4410BR
Есть на складе
A sealed tubular glass envelope protects the magnet contact (reed contact) against dust and water.
The reed contact is actuated by means of a permanent magnet.
For installation in steel profiles (magnetic material) only block reed contacts can be used.
Included in delivery:
2 surface-mounted housings, 2 caps,
3 spacers 2 mm
1 spacer 6 mm
To be integrated into the signalling system of the Smart Panels by the KNX system via binary inputs / push-button interfaces.
The reed contact is actuated by means of a permanent magnet.
For installation in steel profiles (magnetic material) only block reed contacts can be used.
Included in delivery:
2 surface-mounted housings, 2 caps,
3 spacers 2 mm
1 spacer 6 mm
To be integrated into the signalling system of the Smart Panels by the KNX system via binary inputs / push-button interfaces.
- коричневый
- 1-pole. 1-way NO contact
- Контакт = 32 мм x Ø 8 мм Магнет = 30 мм x Ø 6 мм AINICo 5Коробка (ДхШхВ) = 54 x 13 x 13 мм
- LIYY 2 x 0.14 мм. Ø 3.2 мм (длина 3 м)
- макс. 0.5 A
- макс. 100 В DC
- 0.15 Ом
- макс. 10 Вт или 10 ВA
- макс. 40 В
