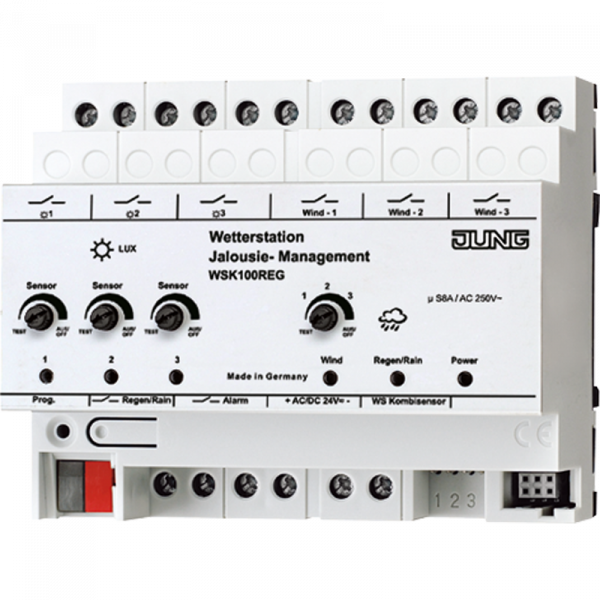

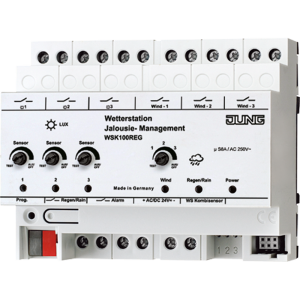

Метеостанция, WSK 100 REG
Артикул: WSK100REG
Есть на складе
REG-корпус 6 TE
In connection with the digital combi sensor WS10 KS and the power supply unit WSSV10, the weather station WSK100 REG measures brightness, wind intensity and rain. Based on brightness and wind intensity, the station controls a connected shutter control system independently for the east, south and west sides of a house.
Характеристики
In connection with the digital combi sensor WS10 KS and the power supply unit WSSV10, the weather station WSK100 REG measures brightness, wind intensity and rain. Based on brightness and wind intensity, the station controls a connected shutter control system independently for the east, south and west sides of a house.
Характеристики
- Independent outputs for the shutters of the east, south and west facade of a house
- Separately adjustable shading function for the east, south and west facade
- Presettable common limit value for the wind alarm for the three house facades
- Precipitation detection with switched output, e.g. for the control of skylights
- Standard shutter moving time of 2.5 minutes in sun protection mode can be shortened independently for each facade
- Monitoring of combination sensor connection cable with alarm function and message display
- Operation with additional power supply (ref.-no.: WSSV 10)
- -5 ... +45 °C
- -25 ... +70 °C
- 108 мм (6 установочных модулей)
- 1 x 0.5 ... 4 мм²
- 1 x 0.34 ... 4 мм²
- 1 x 0.14 ... 2.5 мм²
- макс. 300 мA
- макс. 93 % относительной влажности. без конденсата
- relay (NO contacts)8 x 250 V / 8 A
- screw terminals
- 4-pole WAGO terminal Type 252-104
- да / нет
- около 0 ... 76 клк
- ± 5 %
- 1 ... 20 м/с. ВЫКЛ
- около 5 м/с
- около 10 м/с
- около 15 м/с
