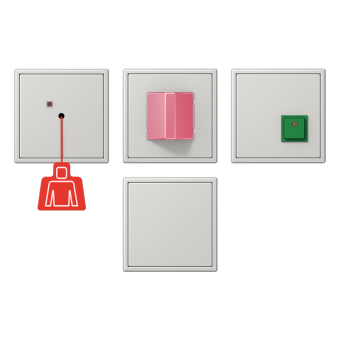

Набор системы срочного вызова, NRS LS 0834 LG

consists of pull cord push-button, emergency signal, reset button and power supply
screw fixing only, without claws
комплектуется 1-кратными рамками

Emergency system
The JUNG emergency system is a well-conceived, complete set for emergency calls in WCs or en-suite bathrooms in old people’s homes and nursing homes or WC facilities in public buildings. It ensures that a person in need of help can sound the alarm in an emergency and meets all the safety-related requirements in accordance with DIN VDE 0834.

The emergency system is a modular distributed system.

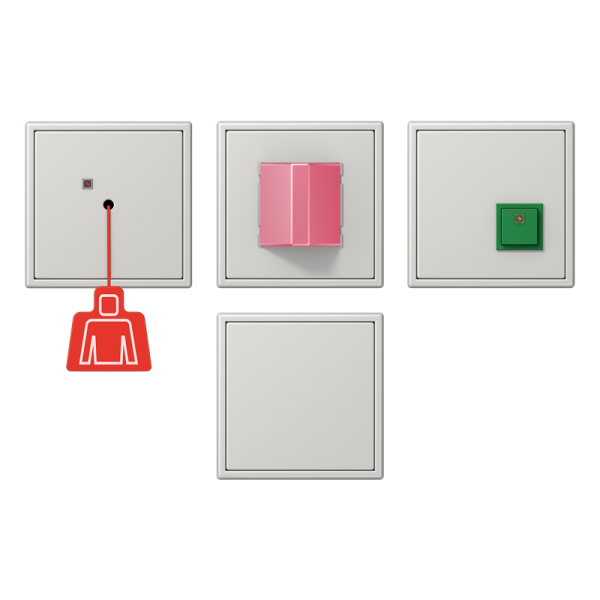

The following four components are available as a complete emergency system set:

• Pull cord push-button
  An emergency call can be triggered in the bathroom/WC via an easily accessible pull cord. The pull cord push-button can also be installed in the middle of the room on the ceiling so that it is easily accessible for people in need of help. A red lamp on the switch signals that the emergency call has been triggered successfully.

• Emergency signal
  The emergency signal can e.g. be installed outside next to the WC door or landing door. A triggered emergency call is signalled visually by a red LED and acoustically by a buzzer, 90 dB(A). Both signals can, if required, be changed from continuous light/continuous tone to flashing light/pulsing tone.

• Reset button
  The reset button is installed next to the door in the same room as the pull cord push-button. The assisting personnel can reset the triggered call.

• Power supply for the emergency call system with DC 24 V

The service unit, service terminal and the call button are separately available. The service unit can be installed in addition to the components of the emergency set e.g. in a staff room or lobby. A green button indicates presence while a yellow button suppresses the acoustic emergency signal for 20 seconds. The call button has an additional control for triggering an emergency call.

The emergency system is available for the AS / A, CD and LS design ranges to complete a unique design in a building. The design frames are part of the system set.
For a system extension all components are available separately.
