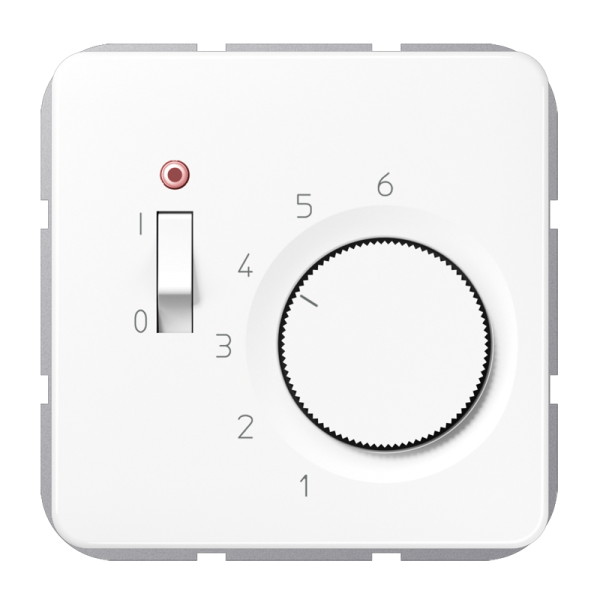

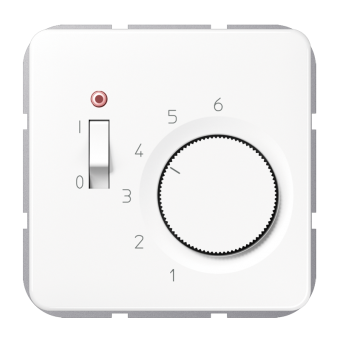

Room thermostat (1-way NC contact), TR CD 231 WW

with screwless terminals for rigid wires up to 2.5 mm²
screw fixing only, without claws
1-pole NC contact 10 (4) A, AC 230 V ~, 50/60 Hz
Значение в скобках – для индуктивной нагрузки с cos ? = 0,6.
Thermal feedback (neutral conductor required)
Hysteresis: 0.5 K, nominal range: +5 °C ... +30 °C
Separate terminal for temperature reduction of 5 K (e.g. during night time)
ON/OFF switch with status LED
When set temperature is reached the contact opens up.
